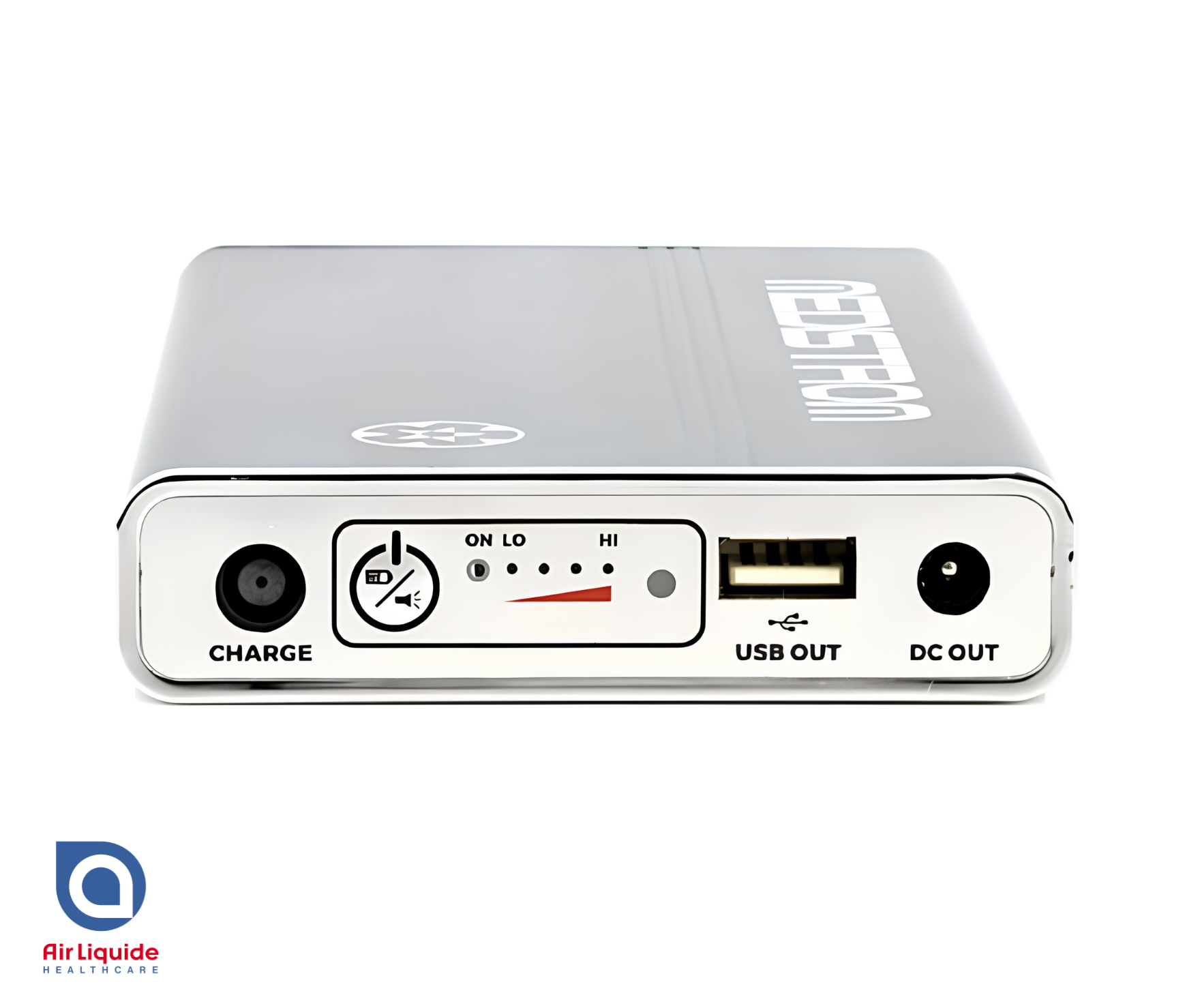

Medistrom™ Pilot-24 Lite Battery and Backup Power Supply

Power your 24V CPAP machine anywhere with the Medistrom Pilot-24 Lite portable battery and Uninterruptible Power Supply (UPS). Designed for travel, camping, or emergency power outages, the Pilot-24 Lite delivers reliable 24V power to leading CPAP devices while serving as a backup battery that seamlessly engages if mains electricity fails.

Weighing under 600 grams and flight compliant for airline carry-on, it ensures continuous sleep apnea therapy wherever your travels take you.

Key Features:

• UPS Backup Power Protection: Can be connected inline between your CPAP machine and wall outlet. In the event of a power outage, the battery instantly switches to battery power without interrupting therapy or waking you up.
• FAA Compliant for Air Travel: At 95 Wh capacity, it complies with TSA/FAA guidelines (<100 Wh limit) for carry-on lithium-ion batteries, making it flight-friendly.
• Multi-Device Functionality: Features an integrated USB port (5V 2.4A) to charge smartphones, tablets, or other handheld electronic devices while on the go.
• Integrated LED Flashlight: Built-in emergency LED light provides convenient illumination while camping or during home blackout power outages.
• Lightweight & Compact: Weighs only 560 grams (1.23 lbs) for easy packing into carry-on luggage or CPAP travel bags.

Product Specifications:

• Capacity: 95 Wh / 19,000 mAh
• Output Voltage: 24V DC
• USB Output: 5V DC, 2.4A
• Weight: 560 g (1.23 lbs)
• Dimensions: 17 cm x 9 cm x 2 cm
• Recharge Time: 2.5 to 3 hours (using machine AC power supply)

Compatibility
Supported 24V CPAP & BiPAP Devices:

• ResMed AirSense™ 10 / AirCurve™ 10 (Output cable included)

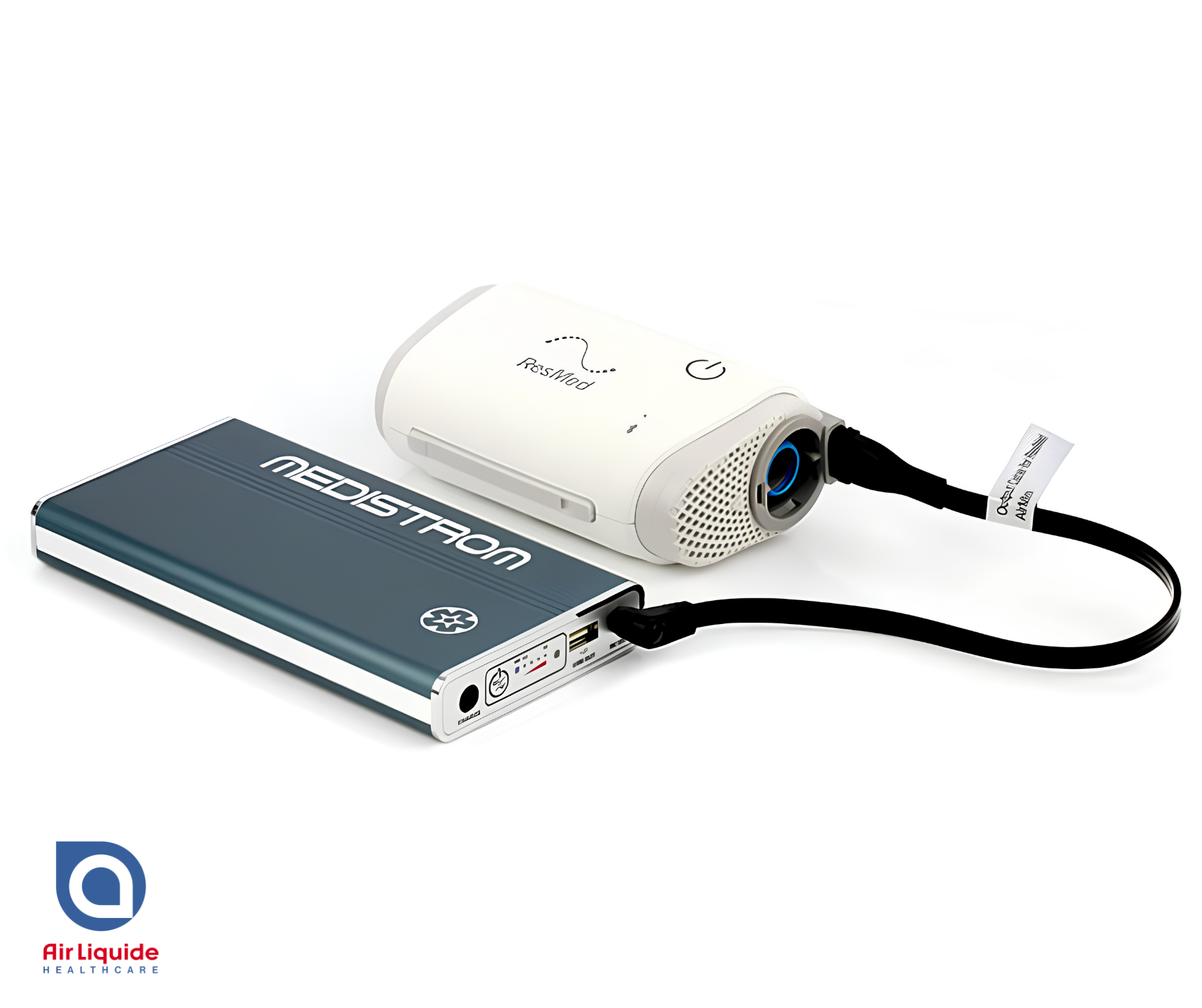

• ResMed AirMini™ Travel CPAP (Output cable included)

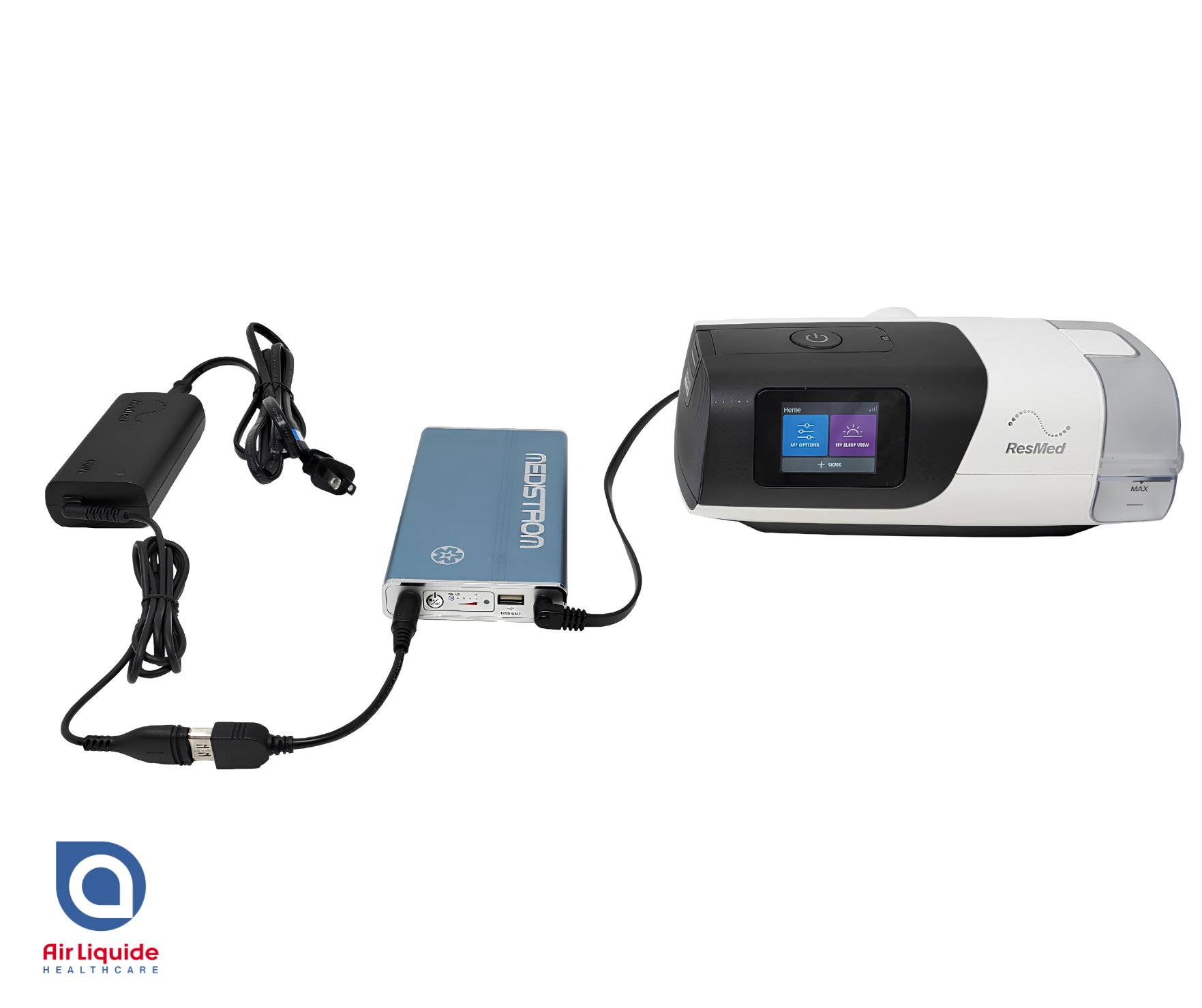

• ResMed AirSense™ 11 / AirCurve™ 11 (Requires Medistrom AirSense 11 Adapter Kit, sold separately)
• ResMed S9™ Series (Requires Medistrom S9 Cable Kit, not available)
• BMC Luna G3 / Apex iBreeze / Sefam S.Box (Requires brand-specific adapter cables, sold separately (not available)
• Non-Compatible Devices: Will not power 12V CPAP devices such as Philips Respironics DreamStation/System One or Fisher & Paykel SleepStyle (these require the Medistrom Pilot Flex).

What’s Included:

• 1 x Medistrom Pilot-24 Lite Battery Unit
• 1 x Output Cable for ResMed AirSense 10 / AirCurve 10
• 1 x Output Cable for ResMed AirMini
• 1 x Charging Adapter Cable for ResMed AirSense 10

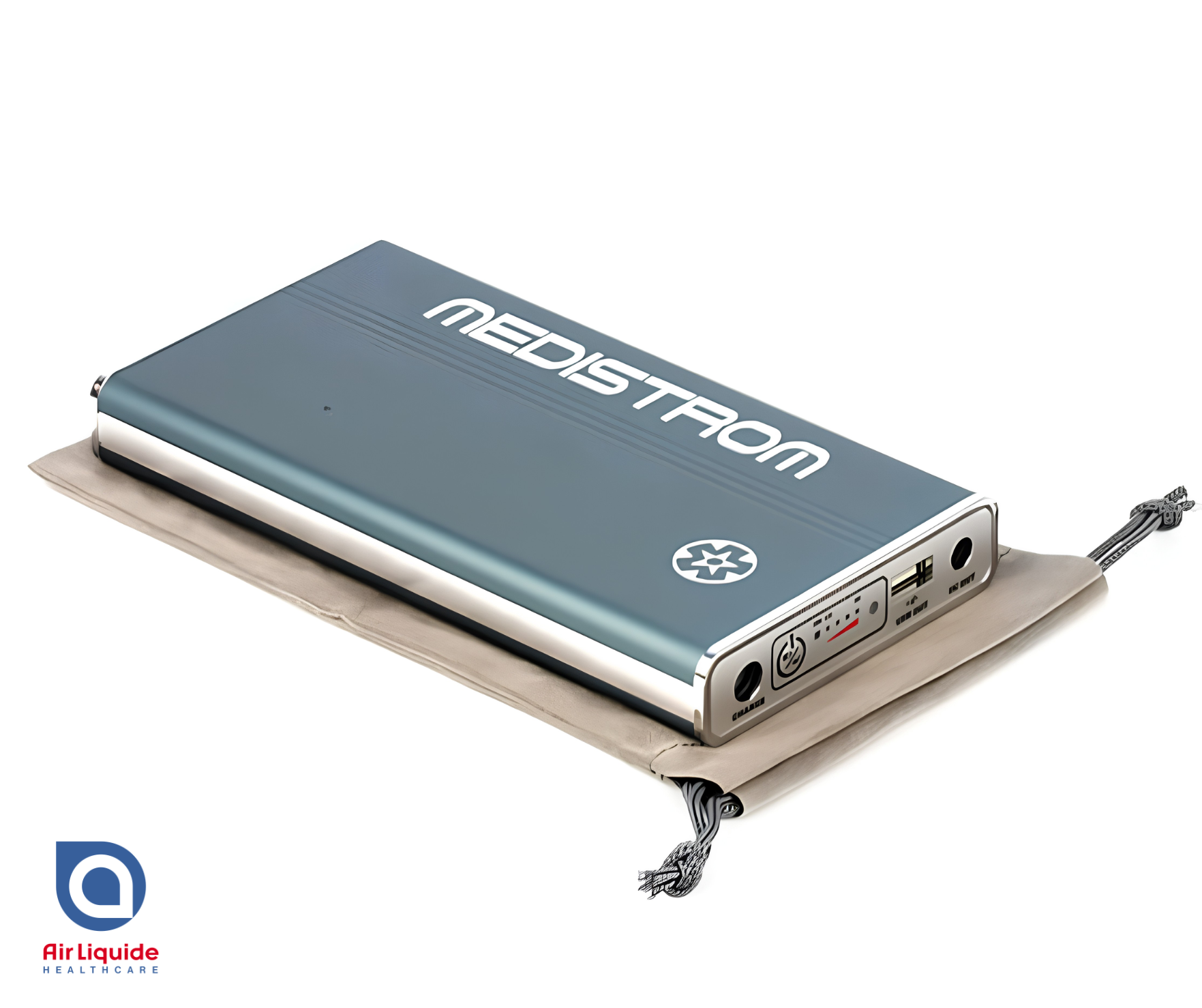

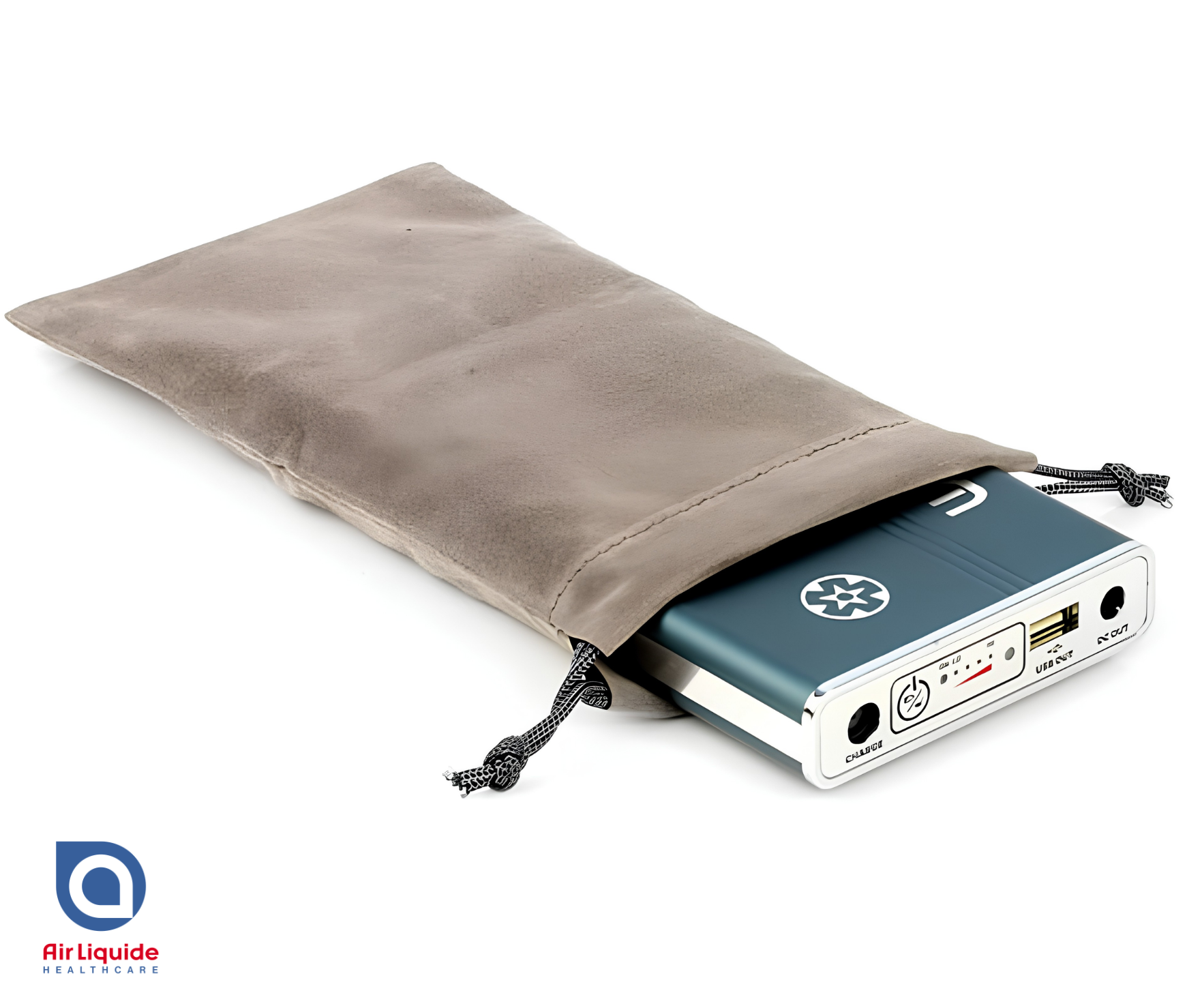

• 1 x Fabric Battery Storage Pouch
• Note: Uses your CPAP machine's original manufacturer power supply for charging; a standalone AC wall charger brick is not included.

Care and Usage Guidance:

• Humidification & Heated Tubing Note: To maximize battery run time (typically 1 to 2 nights / 8–16 hours), turn off or disconnect heated humidification and heated tubing. Running heated humidifiers or heated hoses significantly increases power draw, reducing battery runtime to approximately 3 to 4 hours.
• Charging & Maintenance: Fully charge the battery prior to first use. If storing unused for extended periods, recharge the battery at least once every 6 months to preserve cell life.

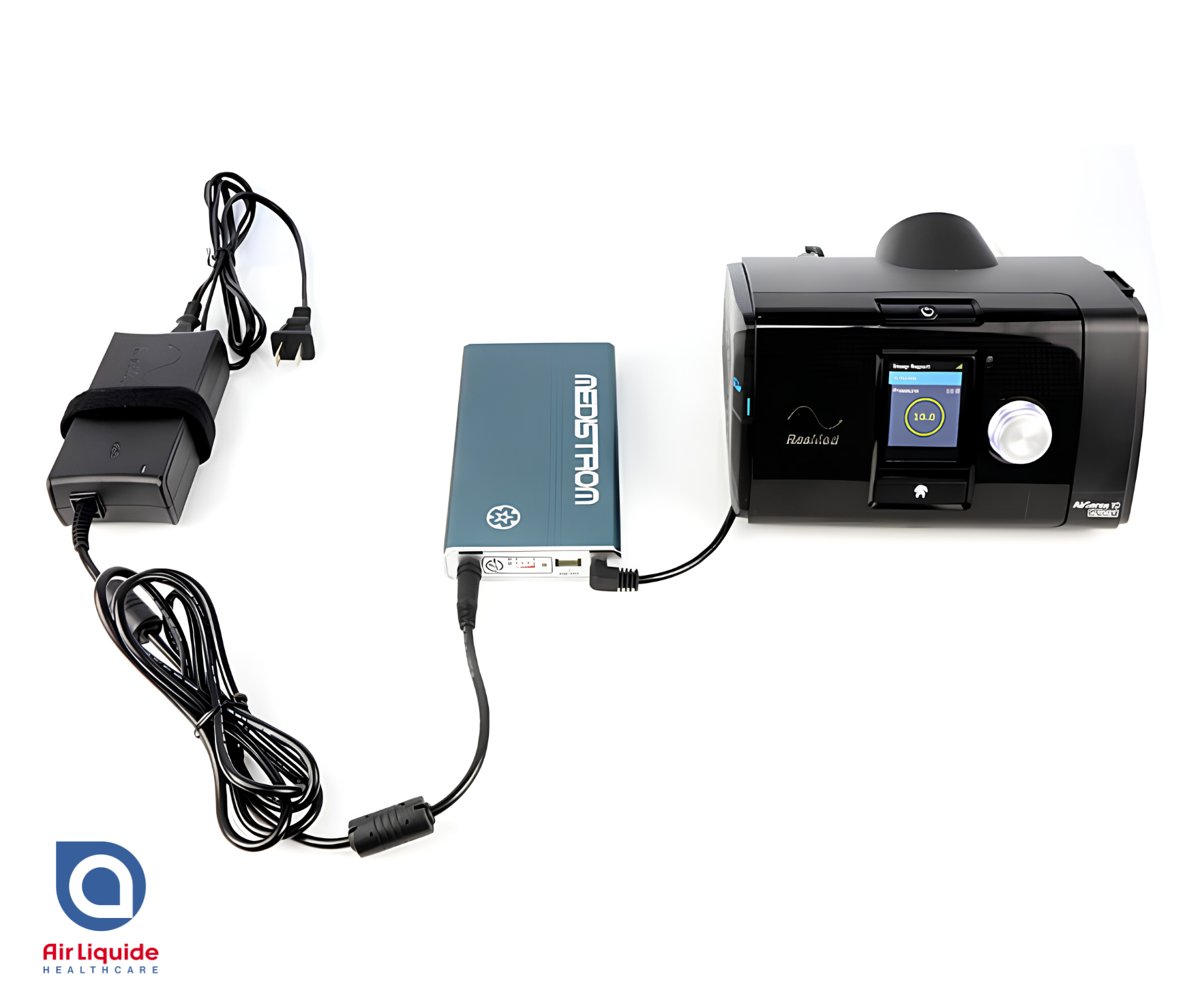

• UPS Configuration: To use in backup mode, plug your machine's original power supply into the wall, connect it to the Pilot-24 Lite charging port, and connect the Pilot-24 Lite output cable directly to your CPAP device.

Pilot Lite Manual
