Zen-O Portable Oxygen Concentrator

Delivers up to 2 litres of oxygen per minute via both continuous and pulse flow. Adjustable settings from 1.0 to 6.0 in 0.5 increments on pulse mode and 0.5 to 2.0 on continuous mode. Automatically increases the amount of oxygen delivered if the patient’s breath rate rises (RRT - Rate Response Therapy) Auto mode feature activates after 60 seconds if no breath is detected, delivering oxygen at 18bpm ensuring the patient continues to receive oxygen in instances where cannula may be dislodged for example.

• It is important that you discuss with your care provider what setting to use your pulse dose model at, as the setting does not relate to the flow rate, e.g. setting 2 does not mean 2 L/min.
• Your care provider will use an oxygen pulse oximeter to titrate you under different levels of physical activity to make sure the setting is appropriate for your therapy.
• If you need to hire this model to try before you buy, talk to our customer service team who may be able to provide you with a rental concentrator (subject to availability)

Inclusions:

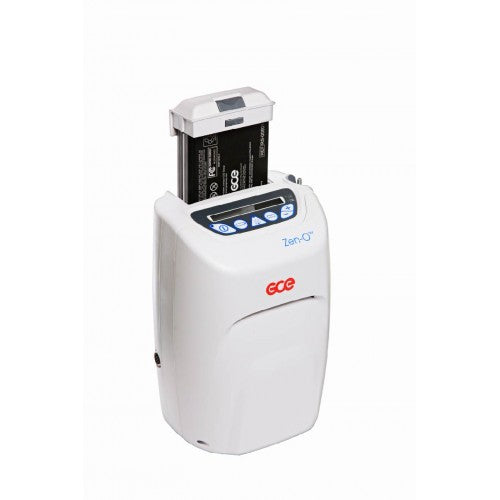

• 12 Cell Lithium Batteries x 2
• AC Power Supply
• Car Charger
• Power Cord

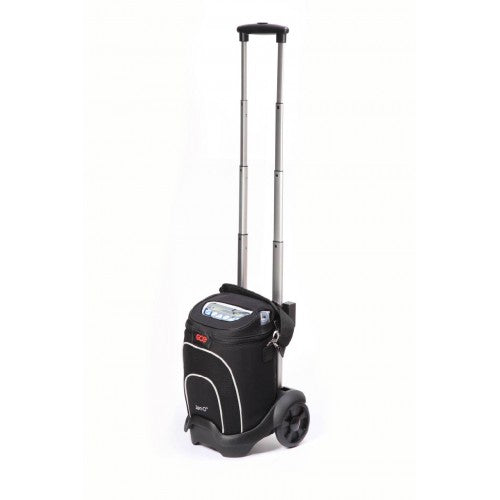

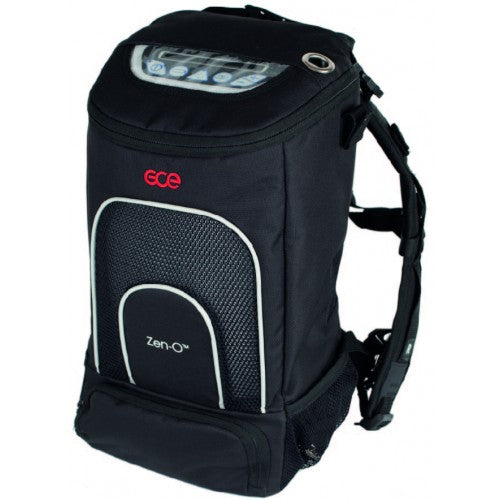

• Pull Cart/Carry Bag
• User Manual & Quick Start Guide

Key Features:

• Delivers up to 2 litres of oxygen per minute via both continuous and pulse flow.
• Adjustable settings from 1.0 to 6.0 in 0.5 increments on pulse mode and 0.5 to 2.0 on continuous mode.
• Automatically increases the amount of oxygen delivered if the patient’s breath rate rises (RRT - Rate Response Therapy)
• Auto mode feature activates after 60 seconds if no breath is detected delivering oxygen at 18bpm ensuring the patient continues to receive oxygen in instances where cannula may be dislodged for example.
• Up to 8 hours battery duration with 2 x 12 cell batteries at 18 breaths per minute.
• Eco mode feature allows the user to switch from RRT to “Fixed Minute Volume” for longer battery duration.
• FAA compliant - suitable for air travel.
• Total weight 4.66kg with 1 x 12 cell battery or 5.11kg with 2 x 12 cell batteries.
• Size 212mm x 168mm x 313mm
• Warranty - Device : 3 years
• Warranty - Sieve beds: 3 years
• Warranty - Battery and accessories: 1 year

zeno-operating-manual
