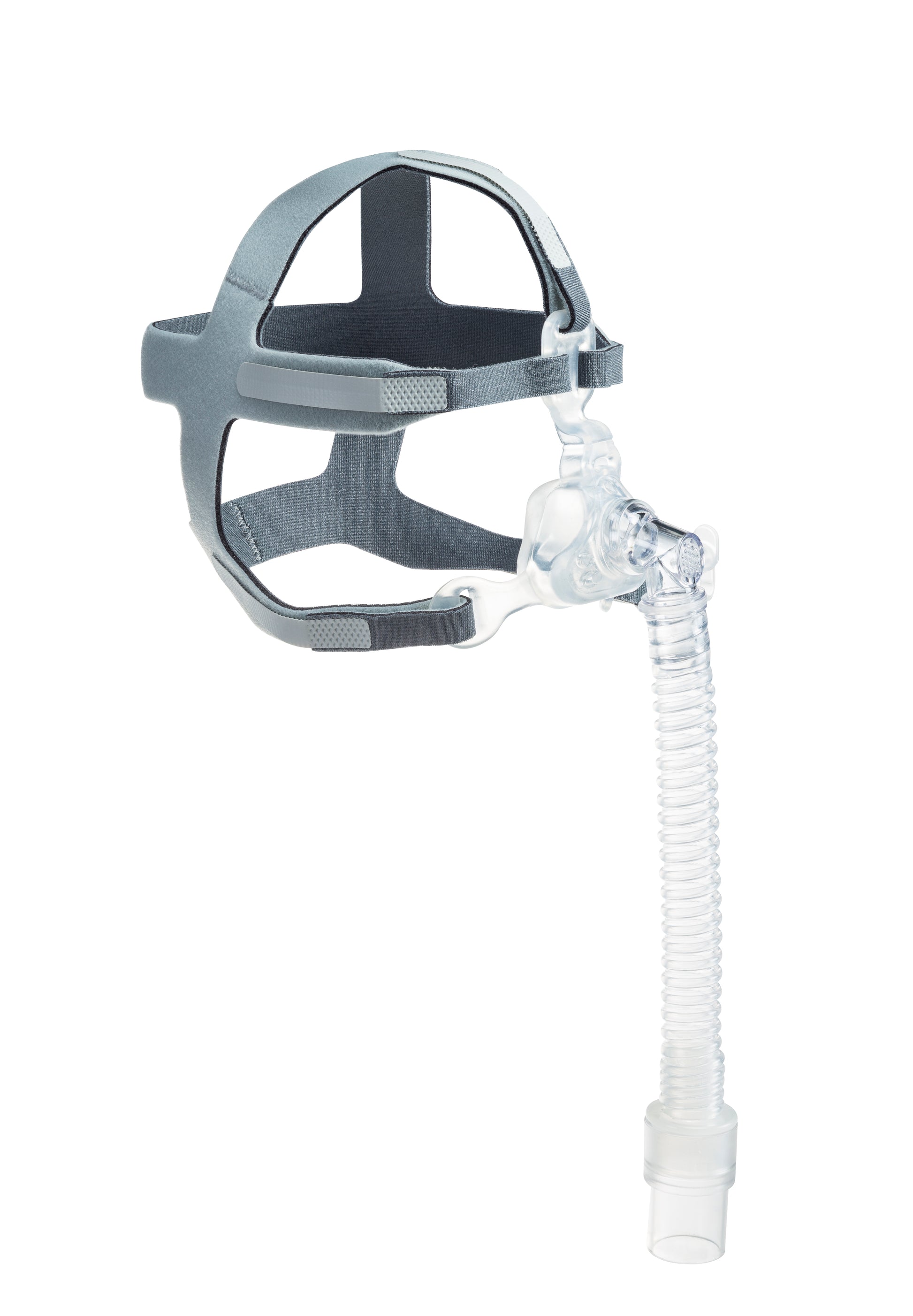

Air Liquide Medical Systems Respireo™ SOFT Baby Vented Paediatric Nasal Mask Range

Engineered in collaboration with pediatric pneumologists and neonatologists, the Air Liquide Medical Systems Respireo™ SOFT Baby Vented nasal mask provides gentle non-invasive positive pressure ventilation (NIPPV) and CPAP therapy for infants. Designed with calibrated exhalation ports for single-limb circuits, it accommodates the unique facial geometry of growing infants without placing harmful pressure on delicate skin or developing facial bone structures.

SKU & Sizing Guide

Size	SKU	Target Patient Weight / Fit Reference
Extra Extra Small (XXS)	6998S	Micro-infants / neonates (~3 kg and below)
Extra Small (XS)	6957S	Infants approx. 3 kg to 6 kg
Small (S)	6958S	Infants approx. 6 kg to 12 kg



Key Features:

• Infant-Specific Anatomical Design: Tailored to fit prominent foreheads and flat nasal bridges without causing breakdown on fragile skin or compromising facial bone development.
• Integrated Calibrated Vented Ports: Built-in micro-exhalation orifices continuously wash out exhaled CO2, making it compatible with standard home CPAP and BiPAP devices.
• 5-Point Headgear Harness: Distributes support tension evenly across five anchor points, including a dedicated forehead strap, ensuring dynamic seal stability without overtightening.
• Ultra-Soft Silicone Cushion: Flexible, thin-lip silicone cushion inflates gently under air pressure to form an airtight seal with minimal facial contact.
• 360° Rotating Swivel & External Port: Flexible tube connection allows freedom of movement for active babies, while an integrated auxiliary port enables supplemental Oxygen delivery or pressure monitoring.

Product Specifications:

• Mask Type: Paediatric Nasal Mask (Vented / Intentional Leak)
• Weight Range Covered: Neonatal to 12 kg (up to approx. 18 months)
• Material: Biocompatible, medical-grade silicone and polycarbonate (100% Latex-Free)
• Brand: Air Liquide Medical Systems (ALMS)

CPAP & BiPAP Device Compatibility:

• Compatible with all standard CPAP, APAP, and BiPAP/NIV systems operating on single-limb circuits with passive exhalation.
• Connects to standard 22 mm or 15 mm paediatric CPAP air tubing via included swivel adapter.

Non-Compatible Systems:

• Should not be used on closed ventilator circuits requiring an active external exhalation valve (use the Non-Vented Respireo Baby mask instead).

What’s Included:

• 1 x Respireo™ SOFT Baby Vented Silicone Mask Frame & Cushion Assembly in selected size
• 1 x Respireo™ SOFT Baby 5-Point Fabric Headgear Harness
• 1 x Vented Flexible Short Tube with 360° Swivel

Care and Maintenance Guidance:

• Daily Cleaning: Disassemble the cushion and tube connection daily. Hand wash in warm water using a mild CPAP cleanser or non-moisturising liquid dish soap.
• Weekly Cleaning: Hand wash the 5-point headgear harness in warm soapy water.
• Drying: Rinse all components thoroughly and allow to air dry completely on a towel out of direct sunlight. Do not place in a dishwasher or clothes dryer.
• Institutional Decontamination: Approved for thermal disinfection and autoclave sterilization up to 12 cycles between patients in clinical settings (headgear and tubing must be replaced per patient).
• Replacement Schedule: Replace silicone cushions every 1 to 3 months, and complete mask frames/headgear every 6 months or at first sign of wear.

Respireo Soft Baby Vented - User Manual

Guide Soft Baby 1
