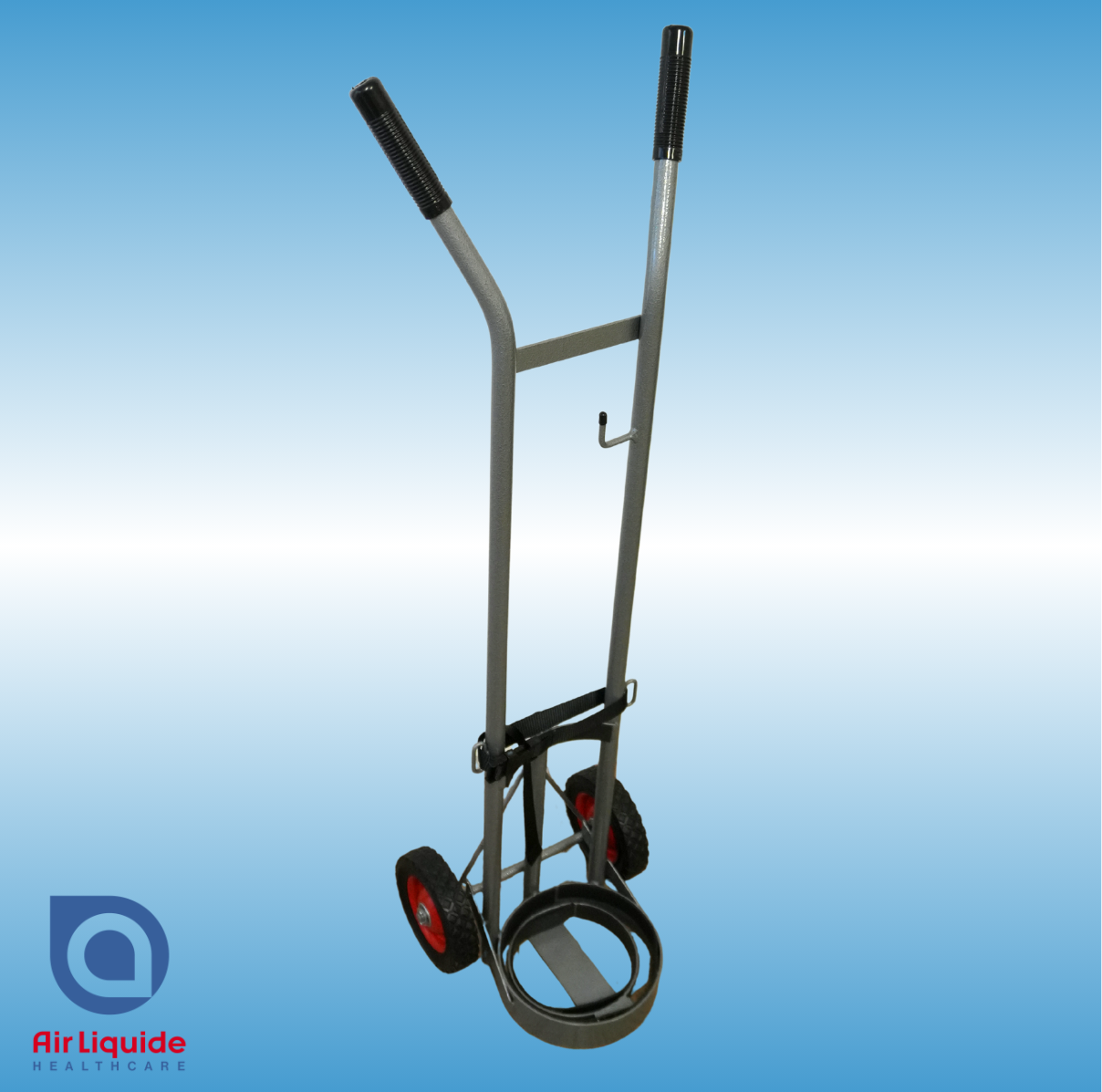

Medical Oxygen Cylinder Trolley – 'D' Size

Safely transport and maneuver standard D-size medical Oxygen cylinders with this heavy-duty medical cylinder trolley. Built for healthcare facilities, emergency response, and home care environments, it provides smooth mobility and stable upright support to prevent dangerous cylinder tipping during patient transit.

Key Features:

• Secure Cylinder Ring & Base Plate: Features a custom-contoured top ring (140 mm diameter) and deep base platform to hold D-size cylinders upright without slipping or rattling.
• Safety Retention Chain: Integrated link chain clips tightly around the upper cylinder body to lock the tank firmly against the frame spine during movement.
• High-Grade Stainless Steel Construction: Built from corrosion-resistant 304 stainless steel with smooth welds for long-lasting durability in clinical and emergency settings.
• Non-Marking Rubber Wheels: Equipped with large, silent-glide rubber wheels that move smoothly over hospital floors, tiles, carpet, and outdoor footpaths without leaving floor scuffs.
• Ergonomic Push Handle: Stands at 1 meter in height with a curved handle grip to minimize back and wrist strain when pushing or maneuvering through narrow corridors.

Product Specifications:

• Cylinder Capacity: 1 x 'D' Size Medical Oxygen Cylinder (approx. 140 mm diameter)
• Height: 100 cm (1.0 meter)
• Base Dimensions: Approx. 38 cm x 27 cm
• Material: 304 Stainless Steel
• Wheel Type: Heavy-duty, non-marking solid rubber

Compatibility
Compatible Gas Cylinders:

• Standard Medical Oxygen "Size D" Cylinders (Air Liquide, BOC, Coregas, Linde)
• Pin-index valve D-cylinders with standard flowmeters or regulators attached

Non-Compatible Cylinders:

• Will not fit smaller C-size cylinders or larger E-size, G-size, or H-size medical gas bottles.

What’s Included:

• 1 x 'D' Size Medical Oxygen Cylinder Stainless Steel Trolley with Integrated Retention Chain

Care and Usage Guidance:

• Loading Procedure: Set the bottom of the D-cylinder squarely onto the lower base tray, align the neck within the top ring, and latch the safety retention chain tightly around the cylinder body before rolling.
• Cleaning & Infection Control: Wipe frame surfaces regularly using standard hospital-grade disinfectant wipes, isopropyl alcohol solution, or warm soapy water.
• Maintenance: Periodically inspect wheels and axle nuts for debris or thread wrap. Ensure the retention chain clip remains clean and operates smoothly.
