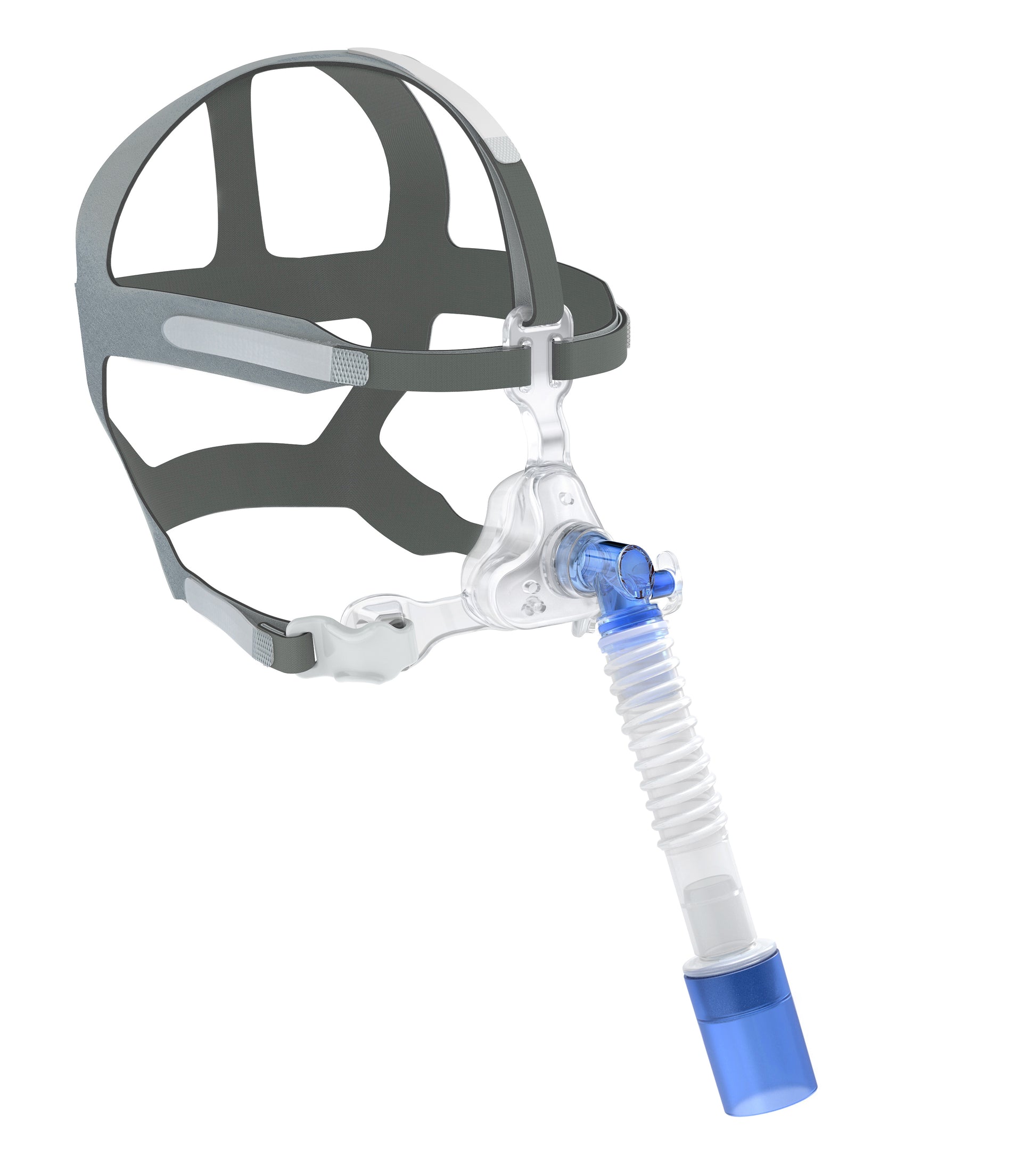

Air Liquide Medical Systems Respireo™ SOFT Child Non-Vented Paediatric Nasal Mask

The Air Liquide Medical Systems Respireo™ SOFT Child Non-Vented paediatric nasal mask is designed specifically for children aged 1.5 to 6 years (10–20 kg) receiving non-invasive positive pressure ventilation (NIPPV). Built in collaboration with paediatric specialists, its non-vented design lacks built-in exhalation ports, making it ideal for institutional or home clinical ventilation circuits utilizing external exhalation valves or dual-limb systems.

Key Features:

• Child-Specific Pediatric Contour: Ergonomically designed around developing pediatric facial anatomy, avoiding pressure on fragile bone structures and sensitive nasal bridges.
• Non-Vented (NV) Circuit Integration: Operates without built-in exhalation holes to ensure precise volumetric delivery and CO₂ monitoring on ventilators equipped with active exhalation valves.
• Ultra-Soft Silicone Seal: Features a thin, flexible cushion rim that inflates gently under pressure to deliver a reliable seal without leaving skin indentations.
• 5-Point Headgear Harness: Distributes strap tension evenly across the crown and forehead to maintain stability during nighttime movement or restless sleep.
• 360° Swivel & Auxiliary Port: Features a rotating tube connector to reduce hose drag, plus an integrated port for supplemental oxygen delivery or airway pressure monitoring.

Product Specifications:

• Target Patient Age / Weight: 1.5 to 6 years old / 10 kg to 20 kg (22–44 lbs)
• Mask Type: Pediatric Nasal Mask (Non-Vented / Blue Elbow or Cap)
• Material: Biocompatible, medical-grade silicone and polycarbonate (100% Latex-Free)
• Brand: Air Liquide Medical Systems (ALMS)

Ventilator & Circuit Compatibility:

• Compatible with non-invasive mechanical ventilators and CPAP/BiPAP systems configured with an external exhalation valve, exhalation manifold, or dual-limb circuit.

Non-Compatible Systems:

• Will not safe to use on standard single-limb home CPAP systems without a dedicated exhalation valve or leak port (risk of CO₂ rebreathing).

What’s Included:

• 1 x Respireo™ SOFT Child Non-Vented Nasal Mask Frame with Cushion
• 1 x Respireo™ SOFT Child 5-Point Fabric Headgear Harness
• 1 x 360° Swivel Tube Elbow

Important Safety & Clinical Usage Warning:

• Non-Vented Mask Hazard: This mask contains no intentional leak/exhalation orifices. It MUST be used with a ventilator circuit equipped with an active, functional exhalation valve or external exhaust system.
• Clinical Monitoring: Do not block or seal external valve lines. Ensure continuous oxygen/pressure monitoring according to the attending physician's prescription.

Care and Maintenance Guidance:

• Daily Cleaning: Separate headgear from mask frame. Hand wash cushion and frame daily in warm water using a mild CPAP cleanser or non-moisturising liquid dish soap.
• Weekly Care: Hand wash the 5-point headgear straps weekly in warm soapy water.
• Drying: Rinse thoroughly with fresh water and allow to air dry completely on a towel out of direct sunlight. Do not autoclave, tumble dry, or place in a dishwasher.
• Replacement Schedule: Replace silicone cushions every 1 to 3 months, and complete mask frames/headgear every 6 months or upon sign of physical wear.

The Respireo SOFT Child non vented is a non-invasive nasal mask used for treating respiratory failure in children aged 1,5 to 6 years. Only be used under the instruction of a Medical Doctor. Respireo SOFT Child non vented is designed for use by babies with controlled non-invasive positive pressure ventilation (NPPV).
Respireo SOFT Child non vented is designed for use by a single patient at home or more than one in the hospital environment.
